AboutDudar
who we are
Dudar is a Hi-tech Communication Company with a professional R&D team and invention patents since 2014.
What we do
Dudar focus on providing wireless data transferring terminals, presenting business solutions oriented and adapted to the needs of different customers.
What is our vision
Dudar will always be the pioneer of the wireless communication field. At the mean time, Dudar will always help building a better world by humanity design, stable volume production and promised after-sale service.
802.11ax 1800M 5G indoor CPE
Based on 5G LTE website characters, Dudar Communication R&D complete 5G CPE access solution with 802.11ax Wifi6 Specification. The Speed can be 1000M.
802.11ac 1200M 5G outdoor CPE & Wifi6 Router
Based on 5G LTE website characters, Dudar Communication R&D complete 5G CPE access solution with 802.11ax Wifi6 Specification. The Speed can be 1000M.
STB Router
802.11n 300M router Support remote upgrading via TR-069
-
Support 1
Support HD,UHD,2K and 4K -
Support 2
Support MPEG1/2, H.264, H.265 Support DLNA, Miracast, -
Support 3
Support DLNA, Miracast, Chromecast
MBB
-
4G LTE CPE
Can be customer-defined for all bands and shapes. -
4G LTE MIFI
Can be customer-defined for all bands and shapes. -
4G LTE UFi
Can be customer-defined for all bands and shapes.
LatestProducts
We have developed multiple new technology products for you to choose from
4GDeskPhone
Color LCD with backlight
LCD: 2.39-inch TFT, 240X320
...

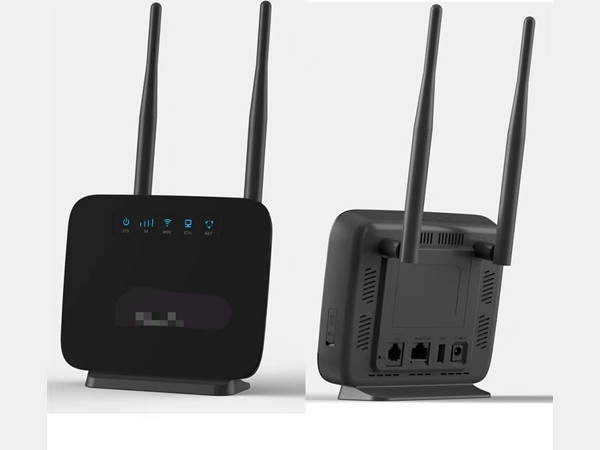

4G CPE
MODEL:DC8971L
BAND:Can be Customized
SPECIFICATION：
CHIPSET: ASR1803L，
TDD-LTE/FDD-LTE/UMTS（WCDMA)，
Battery: 2100mAh,
WIFI:LAN: IEEE802.3/802.3u WLAN: IEEE 802.11 b/g/n 150M (2.4G, MIMO1*1)
Antennas: External LTE antenna
Internal WIFI antenna
MAC address authentication: Supports the MAC address authentication white list and black list; Supports a maximum of 10 MAC address entries; Supports automatic transmission rate adjustment.
Button: Reset/Default

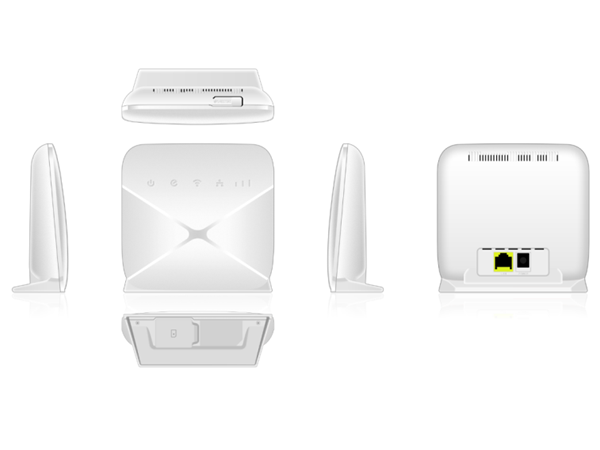

CPE
MODEL:DC8979L
BAND:Can be Customized
SPECIFICATION：
CHIPSET: ASR1803L，
TDD-LTE/FDD-LTE/UMTS（WCDMA),
Gateway: Supports the default gateway address: 192.168.1.1 Supports the Address Resolution Protocol (ARP). Supports the Internet Control Message Protocol (ICMP). Supports the domain name service (DNS).
Antennas: 4G/3G/2G Main antenna
4G MIMO/3G Rx Diversity antenna
Wifi:LAN: IEEE802.3/802.3u WLAN: IEEE 802.11 b/g/n 150M (2.4G, MIMO1*1)
Encryption: Support 64/128/152 bits WEP encryption; Support WPA/WPA2;
Authentication: 802.1x, Pre-shared Key(PSK) Security modes: Port Forwarding, DMZ support;
Firewall for URL filter, MAC filter, Dos ;
Support PIN and PUK based SIM card security;
WAN Access Control;
Remote access control (HTTP).

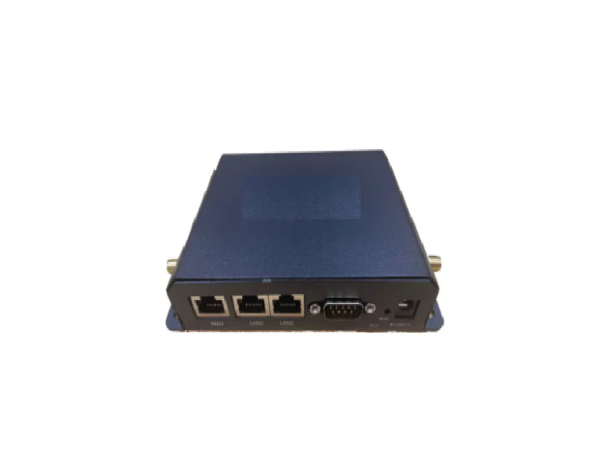

DTU
MODEL:DC8513
BAND:
5G NR: N1/N3/N8/N28/N41/N77/N78/N79
4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/
B28B, B32 can be customized;
4G TDD: B34/B38/B39/B40/B41
5G NR: 1.25Gbps (UL), 2.45 Gbps(DL)
TDD/FDD LTE: Category 12 with 450Mbps( DL) TDD/FDD
LTE: Category 13 with 150Mbps( UL)
SPECIFICATION：
Can be indoors and outdoor
CHIPSET: UNISOC510，
5G NR(3GPP Release15) SA/NSA
TDD-LTE/FDD-LTE，
Port: 3 * Gigabit RJ45 LAN Ports 10/100/1000 auto-sensing,
Antennas: 4 * 5G/4G antennas, 2 * Wi-Fi antennas (2.4G+5G)，
VPN：PPTP/L2TP/SSL VPN/GRE/IP SEC，IPv6/IPv4 dual stack，
MODE: NAT/ Bridge/ Router mode，
SIZE: 120mm*85mm*29mm, WEIGHT:<450g，
Support TR069 and Remote Management

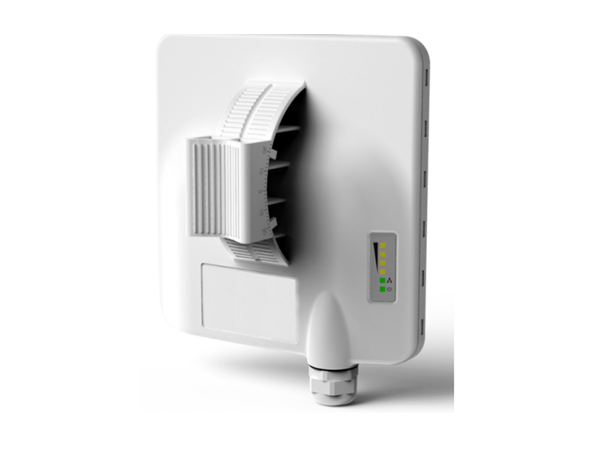

5G CPE
MODEL:DC8514
BAND:
5G NR: N1/N3/N8/N28/N41/N77/N78/N79
4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/
B28B, B32 can be customized;
4G TDD: B34/B38/B39/B40/B41
5G NR: 1.25Gbps (UL), 2.45 Gbps(DL)
TDD/FDD LTE: Category 12 with 450Mbps( DL) TDD/FDD
LTE: Category 13 with 150Mbps( UL)
SPECIFICATION：
Can be outdoor
CHIPSET: UNISOC510，
5G NR(3GPP Release15) SA/NSA
TDD-LTE/FDD-LTE，
Port: 1* Gigabit RJ45 LAN Ports 10/100/1000 auto-sensing,
Antennas: 4 Built-in 5G/LTE antennas, VPN：PPTP/L2TP/SSL VPN/GRE/IP SEC，IPv6/IPv4 dual stack，
MODE: NAT/ Bridge/ Router，
SIZE: 280mm*160mm*56mm,WEIGHT:<700g
Support TR069

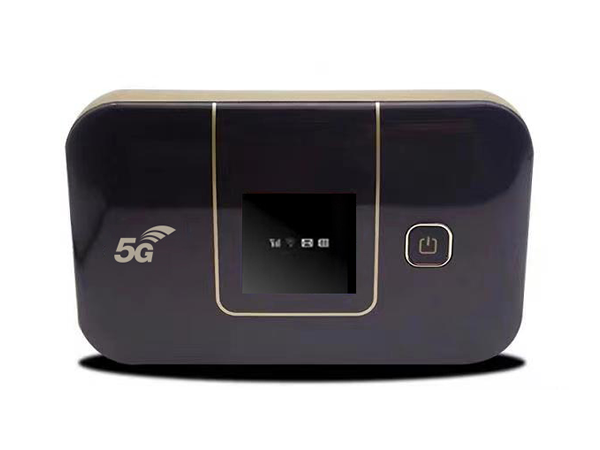

5G Mifi
MODEL:DM8618
BAND:
5G NR: N1/N3/N8/N28/N41/N77/N78/N79
4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/
B28B, B32 can be customized;
4G TDD: B34/B38/B39/B40/B41
5G NR: 1.25Gbps (UL), 2.45 Gbps(DL)
TDD/FDD LTE: Category 12 with 450Mbps( DL) TDD/FDD
LTE: Category 13 with 150Mbps( UL)
SPECIFICATION：
5G NR(3GPP Release15) SA/NSA
TDD-LTE/FDD-LTE，
Antennas: 4*Built-in 5G/LTE antennas,and 2*Built-in WIFI antennas
WIFI:802.11ac(1200M)
Battery:3000mAh
Interface:TypeC
SIZE: 110mm*65mm*15mm, WEIGHT:<250g，
Support TR069

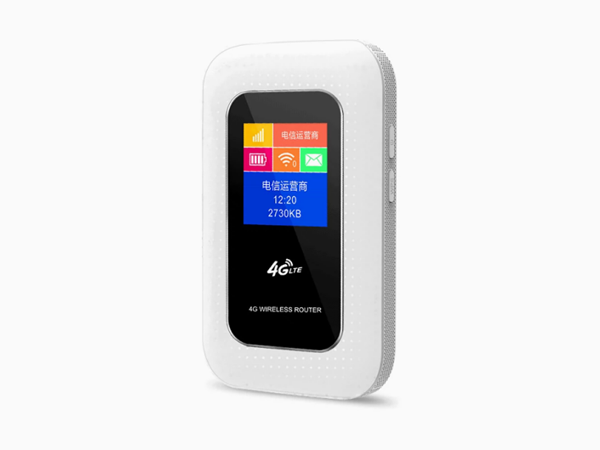

4G Mifi
MODEL:DB618
BAND:
LTE-FDD Band 1/3/5/7/8/20
TDD:38/40/41
UMTS Band 1/5/8
Can be Customized
SPECIFICATION：
TDD-LTE/FDD-LTE，
Antennas: Built-in LTE&WIFI antennas
WIFI:802.11n(150M)
Battery:2600mAh
Interface:TypeC
Private Network Customization
MODEL:DA688
BAND:Can be Customized; Support Mesh
SPECIFICATION：
Support Wireless Communication without public signaland switch to 4G/5G swiftly. Water Proof:IP67, Lightning Protection.

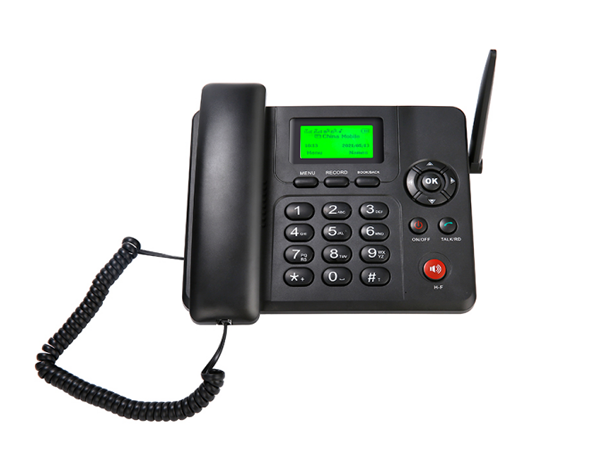

4G Desk Phone
MODEL:DP671
BAND:Globally Supoort
SPECIFICATION：
Color LCD with backlight, LCD: 2.39-inch TFT, 240X320, FM radio, Text messages, phone books, 10 string tones (optional), Speed dial, Caller ID, Stores 10 incoming, 10 outgoing and 10 missed calls, Different chord tones for incoming calls and text messages, Hands free, redial, Call transfer, Call waiting, call ban, Adjustable ringtone volume, Calendar, alarm clock, calculator, Rechargeable standby battery, super long standby, TNC antenna or integrated antenna is optional, Dual SIM card or single SIM card is available

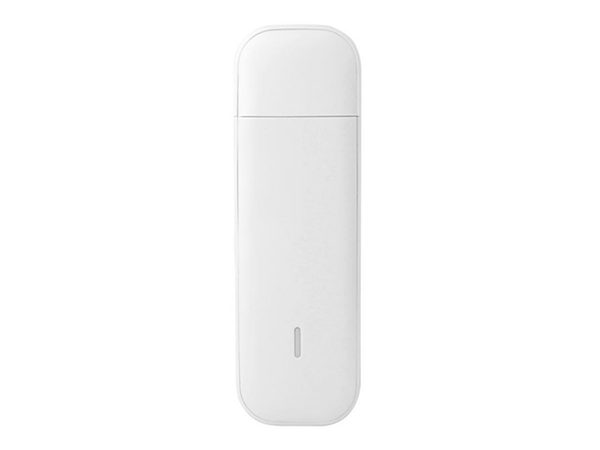

4G Ufi
MODEL:DU8310
BAND:Globally Supoort
SPECIFICATION：
TDD-LTE/FDD-LTE，
Antennas: Built-in LTE&WIFI antennas
WIFI:802.11n(150M)
Interface:USB
SIZE: 110mm*25mm*12mm, WEIGHT:<100g，
LTE IoT Module
Combining the 4G LTE communication technology, LTE IoT Module is always used on terminals except mobile phones.
LTE CAT4 LCC Module
LTE CAT6 MiniPCIe Module
LTE CAT4 M2 Module
